S 558

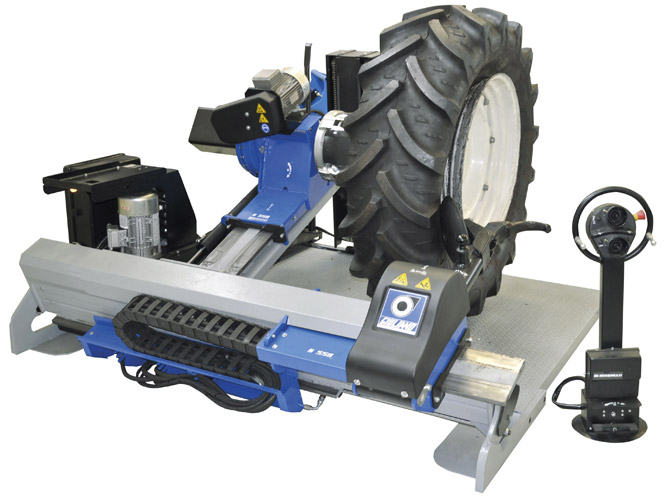

Super-automatic Heavy Duty Truck Tyre Changer 14" - 56"(1)

Super-automatic tyre changer suitable for truck and heavy duty tyres with 14" - 56" rim (max. wheel diameter 2500 mm./98", max. wheel width 1500 mm./ 58"). Suggested for truck, bus and agriculture tyres, professional truck tyre service and high volume shops. Suitable for both tube and tubeless tyres.

Approved by
Main Features
Truck (TC)

Truck
Suitable for truck wheels

TRACTOR (TC)

Tractor
Suitable for agricultural tyres and heavy duty tyres

12\

12"-58"
Allows to operate with tyre assemblies from 12" to 58".

JC (TC)

Jaw Clamping
Rim clamping is performed by means of 4 jaws facing each other, driven by pneumatic cylinders connected to the control pedal.

PANEL (TC)

Control Console
Control panel allows controlling each single automatic movement and positioning of the machine by an easy pressure on the buttons.

RBB (TC)

Roller Bead Breaking
Bead breaking by disks, without contact with the rim, works with tyre assembly in horizontal position

3SPEED (TC)

Three speed chuck
Three speed hydraulic chuck, allows to adjust rotation speed in accordance with the type of operation to perform, ensures work efficiency and safety.

Tyre-changer suitable for truck and heavy duty tyres with 14" - 56"(1) rim (max. wheel diameter 2500 mm./98", max. wheel width 1500 mm./ 58"), equipped with two-speed hydraulic clamping chuck, tool hold arm and chuck hold arm carriages both with automatic motion and automatic tool rotation for a full automation of functions, and mobile control unit for safe and convenient operation. Operating arm and clamping chuck holding arm, moving on the same axis and working differently than in the other models, always keep same angle for best performance on all tyres. This solution also allows working at any height from ground (even a few centimeters) making tyre mounting / demounting operation safer.
Suggested for truck, bus and agriculture tyres, professional truck tyre service and high volume shops.
Functions
  • Hydraulic movement of clamping chuck holding arm (up-down and left-right);
  • Hydraulic travel movement of operating arm carriage (left-right);
  • Operating arm and clamping chuck arm tilting in same direction, working always with 90° angle;
  • Operating arm and clamping chuck arm travelling left-right simultaneously;
  • Double tool (disk + finger) automatic rotation;
  • Wheel clamping by fully hydraulic operated jaws;
  • Operating arm automatic tilting and travelling on carriage;
  • All motions controlled by console and pedal box;
  • Emergency safety button on control console, for stopping all functions;
  • Suitable for control console installation on pivoting arm (optional);
  • Rim center hole clamping range ø 80 - 1200 mm;
  • Clamping chuck minimum height from ground 365 mm (center);
  • Suitable for remote control installation (optional).
(1) For the rims from 47" to 56" it is necessary to use the optional set of 4 jaw extensions for clamping wheels from 47" to 56".
Rim clamping range without extensions 12" - 46"
Rim clamping range with extensions (optional) 12" - 58"
Max. tyre diameter 2600 mm (102")
Max. tyre width 1530 mm (60")
Rim center hole minimum clamping diameter 80 mm
Clamping chuck minimum height from ground 365 mm
Max. tyre assembly weight 2000 kg
3 speed clamping chuck rotation 1 - 4 - 9 rpm
Clamping chuck motor power 2,2 kW
Hydraulic pump motor power 3 kW
Operating pressure 160 bar (2320 psi)
Power supply 400V (50/60 Hz) - 3ph / 3 speed
Other voltages and frequencies available upon request
Bead breaker force 37600 N
Net weight 1370 kg
Max overall dimensions 2420÷3150x2350÷2600x1030÷1970 mm
Standard Accessories
Standard accessories
Optional Accessories
Roller tool for mounting / demounting tubeless truck tyres
Tubeless roller adaptor
Kit of spacers for the clamping jaws, for locking wheels with various thickness of flanging.
Set of 2 G-clamps for tyres with retaining ring. To hold rim and bead retaining ring during bead breaking operation.
Kit of clamp protections in aluminium for alloy rims.
Clamp for alu-rims.
Kit of 4 clamp extensions for clamping range from 47" to 56".
Multichannel radio control 433 MHz (only for S558)
Bead clamp with extra slide, for skidder tyre applications.
G-Clamp with wider bead-press angle, for agriculture tyres.
