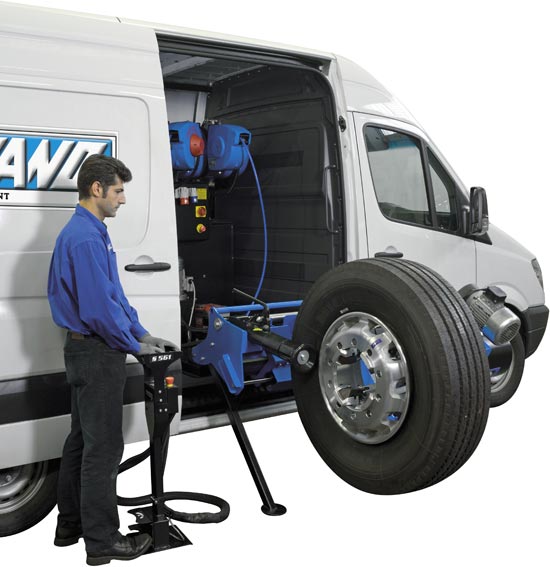

Truck tyre changer for mobile-service of truck, bus and road transportation vehicle tyres, fits in most popular commercial vans. Tyre changer suitable for truck wheels with 13"-27" rim (max wheel diameter 1600 mm./63", max. wheel width 870 mm./34"), equipped with single speed hydraulic clamping chuck and movable control unit, for safe and convenient operation. Suitable for tubeless tyres only.
Functions
- Hydraulic movement of clamping chuck holding arm (up-down);
- Hydraulic travel movement of operating arm carriage (left-right);
- Operating arm manual tilting and travelling on carriage;
- Wheel clamping by fully hydraulic operated jaws;
- Machine installation from the side or back door of the van;
- Clamping chuck holding arm tilts outside the van-door. Folds back inside the van after use;
- All motions controlled by joysticks and pedal box;
- Emergency safety button on control console and generator, for stopping all functions;
- Rim center hole clamping range ø 80 - 700 mm;
- Clamping chuck minimum height from ground 330 mm (according to van's floor height);
- Available in version without generator and compressor (optional).
See generator and compressor specs here below
-
Generator
- Power - 10,6 kW;
- Supply - Diesel;
- Cooling - H2O;
-
Compressor
- Capacity - 100 lt;
- Air delivery - 650 lt/min;
- Voltage - 230V 1ph/400V 3 ph;
- Also equipped with 2 air feeding plugs and hoses, complete with coilers mt. 10, plus one
extra electric plug for connecting 220V-1ph outlet.
