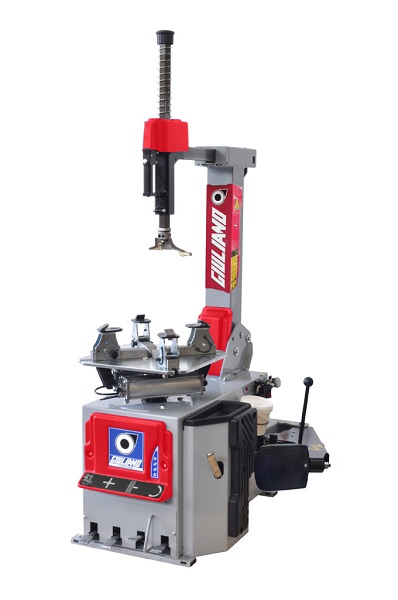

S 226 Bike

Automatic Tilt Back Tyre Changing Machine for motorcycles, scooters & ATV Tyres

Automatic tilt back tyre changing machine for wheels with rim from 6" to 24" (max. wheel diameter 1100 mm./43", max. wheel width 240mm./9,5"). Suggested for motorcycle tyre specialists, servicing motorcycles, scooters and ATV tyres.

Automatic tilt back tyre changing machine for wheels with rim from 6"
to 24" (max. wheel diameter 1100 mm./43", max. wheel width 240mm./9,5").

Functions
  • Tilting tower, sliding horizontal arm with ø 41 mm operating arm;
  • Bead breaker double effect Cylinder ø 200 mm;
  • Reinforced Chassis;
  • Tabletop thickness 12 mm, specially designed for motorcycle wheels;
  • Fitting head designed for both standard and low profiled tyre applications;
  • Plastic protections on fitting head to avoid any damage to alloy rim;
  • Four motorcycle clamping jaws adjustable to 4 different positions: 6"-13", 10"-17",
    14"-21", 17"-24";
  • Two powerful clamping cylinders provide uniform clamping pressure
    Tyre inflation by pedal (optional)
  • Suitable for Press Arm Eco (optional);
    “Easy Access“ extractable pedal box for quick service.
Rim clamping range from outside 6" - 24"
Adjustable jaws can be pre-set in 3 different holes on slides, to start clamping range from 10", 11" or 12". Tabletop cylinder stroke = 10"
Max. tyre diameter 1100 mm (43")
Max. tyre width 240 mm (9,5")
Bead breaker cylinder force at 10 Bar 30800 N
Operating pressure 10 bar (145 Psi)
Power supply 400V-3ph / 220V - 1ph
Motor power 0,55 kW (3ph)
Rotating speed 7 rpm
Pre-set tyre inflating pressure 3,5 bar (50 Psi)
Net weight 225 Kg
Max overall dimensions 1170 x 1820 x 1910 mm
Standard Accessories
Standard accessories
Optional Accessories
Quick release kit for S116 Bike and S226 Bike shovel, including wider bead breaker shovel for bigger motorcycle tyre applications.
Kit of 4 motorcycles adaptors with wider clamps, oversize height
Kit of 4 motorcycles adaptors with wider clamps, standard height.
Kit of 4 shims for wider clamps (only for MOTO-ADM and ATV-ADM)
Hex bar with quick release system for motorcycle wheels mounting tools.
Standard mounting tool with hub, for quick release kit (only in combination with QCKM).
Plastic mounting tool with hub, for quick release kit (only in combination with QCKM).
6"-12" mounting tool with hub, for quick release kit (only in combination with QCKM)
4" mounting tool with hub, for quick release kit (only in combination with QCKM).
PRESS ARM ECO additional arm to ease mounting operations of low profiled and UHP tyres.
CE inflating gauge
Extra-CE inflating gauge.
Pedal operated inflating device.
Manual bead depressor.
Manual bead depressor with extendable travelling pad.
Automatic tyre changer for motorcycle tyres. It can be ordered exclusively at BMW.

Features

  • BMW Motorrad homologated;
  • Tilting tower, sliding horizontal arm;
  • Mounting head with replaceable plastic protections;
  • Clamping jaws adjustable to 4 different positions: 6"-13", 10"-17", 14"-21", 17"-24";
  • Tabletop specially designed for motorcycle wheels (thickness 12 mm);
  • Reinforced vertical tower;
  • Powerful clamping cylinders provide uniform clamping pressure;
  • Bead breaker arm with replaceable protectors for bead breaker shovel.
